All Products

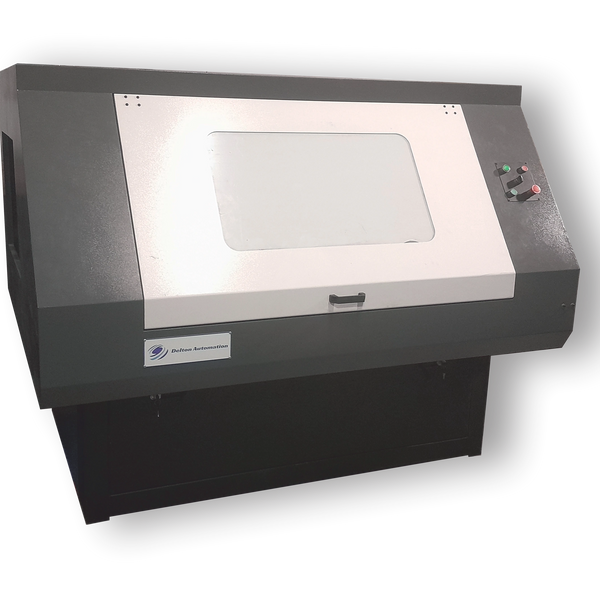

3 Spindle PCB Drilling and Routing Machine
Velocity of X/Y axis :: 30m/min
Velocity of Z axis :: 30m/min
Spindle Speed :: 60 Krpm ATC Spindle (1.8 KW),60 Krpm Manual Spindle (1.8 kw)
Drill Size Range :: 0.3-6.35mm
Positioning accuracy :: +-0.010mm
Table area :: 3x450mmx650mm
Tool Post :: 50 Tool
MaxPower requirement :: 3PH-AC380V,1PH-AC220V
Temperature :: 25+-2 degree C
Noise :: 83dBA
Weight :: 1500kg Apx
Drilling accuracy :: +-0.025mm
Humidity :: 50-65%
Dimension :: 1600mmx1700mmx1550mm

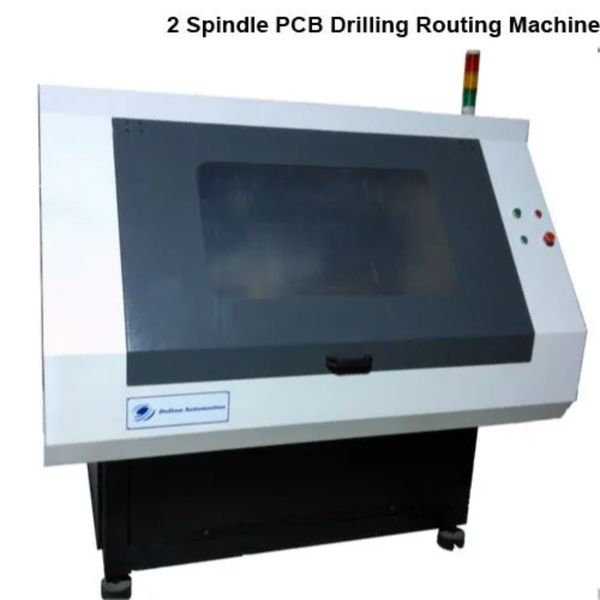

2 Spindle PCB Drilling and Routing Machine
Velocity of X/Y axis :: 30m/min
Velocity of Z axis :: 30m/min
Spindle Speed :: 60 Krpm ATC Spindle (1.8 KW),60 Krpm Manual Spindle (1.8 kw)
Drill Size Range :: 0.3-6.35mm
Positioning accuracy :: +-0.010mm
Table area :: 2x550mmx650mm
Tool Post :: 50 Tool
MaxPower requirement :: 3PH-AC380V,1PH-AC220V
Temperature :: 25+-2 degree C
Noise :: 83dBA
Weight :: 1000kg Apx
Drilling accuracy :: +-0.025mm
Humidity :: 50-65%
Dimension :: 1600mmx1700mmx1550mm

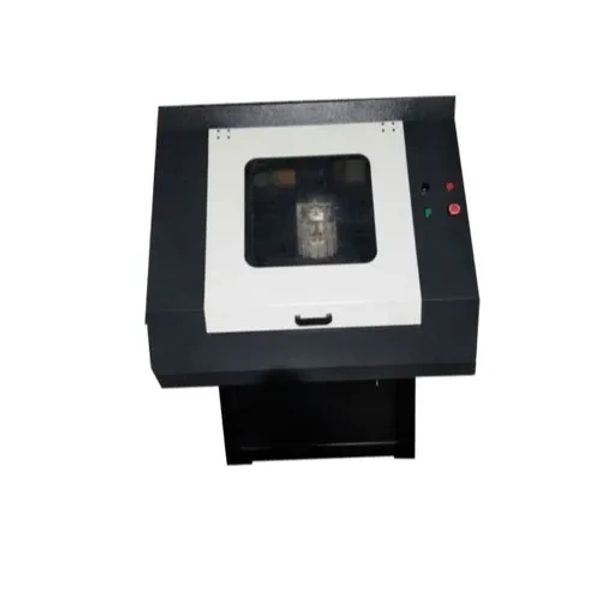

Single Spindle PCB Drilling And Routing Machine
Velocity of X/Y axis :: 30m/min
Velocity of Z axis :: 30m/min
Spindle Speed :: 60 Krpm ATC Spindle (1.8 KW),60 Krpm Manual Spindle (1.8 kw)
Drill Size Range :: 0.3-6.35mm
Positioning accuracy :: +-0.010mm
Table area :: 1x550mmx650mm
Tool Post :: 50 Tool
MaxPower requirement :: 3PH-AC380V,1PH-AC220V
Temperature :: 25+-2 degree C
Noise :: 83dBA
Weight :: 500kg Apx
Drilling accuracy :: +-0.025mm
Humidity :: 50-65%
Dimension :: 1600mmx1700mmx1550mm

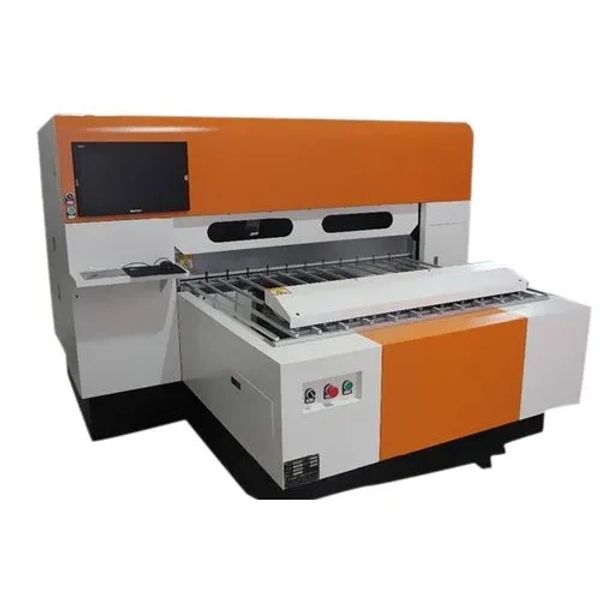

CNC PCB V Grooving Machine
Velocity of X/Y axis :: 30m/min
Velocity of Z/U axis :: 30m/min
Spindle Speed :: 6000 RPM 400W
Positioning accuracy :: +-0.010mm
Table area :: 650mmx650mm
MaxPower requirement :: 3PH-AC380V,1PH-AC220V
Temperature :: 25+-2 degree C
Noise :: 83dBA
Weight :: 1000kg Apx
Drilling accuracy :: +-0.025mm
Humidity :: 50-65%
Dimension :: 1600mmx1700mmx1550mm
CNC PCB V Grooving Machine
Machine Area :: 1300x2500mm
Spindle Motor :: 5.5Kw
Z Axis Travelling:: 200mm
Cutting Diameter :: +16mm
Oprating System :: NC GCODE
Linear Guide:: 25mm
Z Axis Motion :: BallScrew
X Y Motion:: Helical Rack and Pinion
Inverter:: INVTMake
Drive and Motor :: 750W Servo
Working Bed:: Aluminum T-Slot
Power :: AC 220v 5Kw
